D-E1-060-30

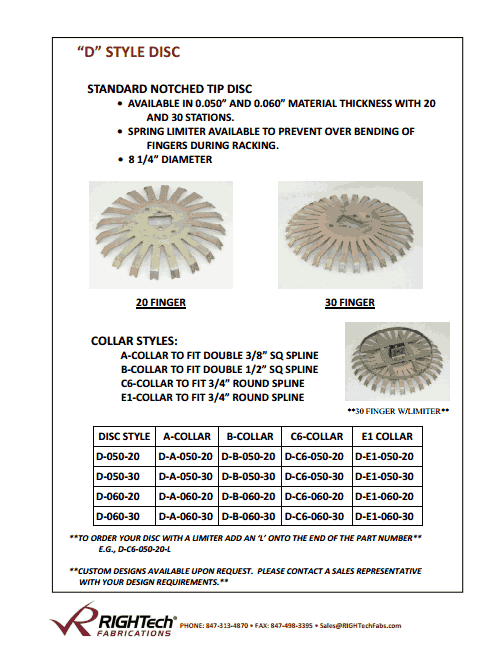

Standard Notched Tip Disc

- Available in 0.050" and 0.060" material thickness with 20 and 30 stations.

- Spring limiter available to prevent over bending of fingers during racking.

- 8 1/4" diameter.

Collar styles:

A-collar to fit double 3/8" SQ spline

B-collar to fit double 1/2" SQ spline

C6-collar to fit double 3/4" round spline

E1-collar to fit double 3/4" round spline

To order your disc with a limiter add "L" onto the end of the part number

Customer designs available upon request.
